The Portable Advance Series:
These high precision members of the Portable Family are ideal for almost any
application including parts counting.

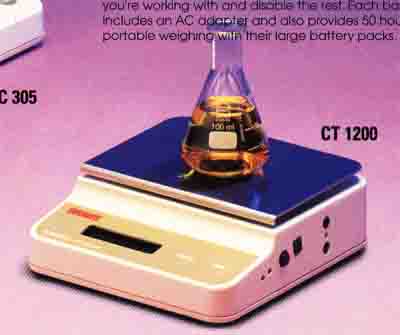

The Portable Plus Series
When you need convenience, precision and value for small weighing jobs, a
Portable Plus is perfect. These balances offer ease of use and a fast updating,
high contrast 0.5" LCD display in a remarkably sturdy housing.
|
Model |
CT 600 |
CT 1200 |
C 305 |
C 505 |
|
Capacity/Readabilitylg) |
600x0.1 |
1200x0.1 |
300/0.1 |
500/0.1 |
|
Weighing Modes |
g, oz, oz t, dwt, ct, Ib, parts counting, custom unit |
g,oz |
|
Repeatability (std. dev.) (g) |
0.07 |
0.1 |
0.07 |
|
Linearity (g) |
±0.1 |
±0.1 |
±0.1 |
|
Tare range |
To capacity by subtraction |
|
Over range capacity |
102.50% |
102.50% |
105% |
|
Stabilisation time (Sec.) |
2.5 |
2.5 |
3 |
|
Shift accuracy (1/2 capacity, 1/2 distancel)(g) |
±0.1 |
±0.1 |
±0.1 |
|
Zero point drift (g/°C) |
±0.1 |
±0.2 |
±0.5 |
|
Sensitivity drift (%/°C) |
±0.01 |
±0.003 |
±0.02 |
|
Operating temperature |
32° to 104° F/0° to 40° C |
|
Calibration |
Auto-calibration |
|
Display (in/cm) |
LCD (0.5/1.3 high) |
|
Power requirements |
100,120,240 VAC, 50/60 Hz AC Adaptor (supplied) or 8 AA
Batteries (not included) |
100,120,240 VAC, 50/60 Hz AC Adaptor (supplied) or 9V
Battery (not included) |
|
Typical battery life |
50 Hours(without optional RS232 accessory) |
25 Hours |
|
Low battery indicator |
Yes |
|
Platform size (in/cm) |
4/10.2 dia. |
4.75x6.5/12x16,5 |
4.75/12.1 diameter |
|
Dimensions (in/cm) |
7x2.5x7.7/17.8x6.3x19.7 |
7x2.5x7.7/17,8x6.3x19.6 |
|
Net weight (Ib/kg) |
1.7/0.8 |
2.3/1 |
1.4/6 |
|
